CCS Approved IMO Standard GMDSS Handle Held Maritime Very High Frequency VHF Radio

Brand Name : GH

Model Number : CY-VH01

Certification : CCS

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Sets Per Month

Delivery Time : 5-10 Days

Packaging Details : Carton (56*133*275mm)

Frequency Range : 154-163Mhz

Channel Spacing : 25Khz

RF Output Power : 1W (Lo) /5W (Hi)

Certificate : CCS

Standard : IMO

Contact Now

The very high frequency VHF is the GMDSS system important component and it is radio equipment that mainly used in communication between people with risks and nearby rescue groups. It can use all VHF channels that are assignment for the international marine mobile service.

When the emergency encounters to be possible transmits the distress signal to other ships or the sea patrol leader in 16 channels.

Frequency Range	154-163Mhz
Channel Spacing	25kHz
Operating Temperature	-20c to 55c
Sensitivity	0.35uV for 12 dB SINAD
RF Output Power	1W(Lo) / 5W(Hi)
Adjacent Channel Power	>70dB
Blocking	>90dB
Spurious Response	>70dB
Harmonic Distortion	<5%
Inter Modulation Rejection	>68dB
Frequncy Error	<+1.5kHz
Case Size(W * H * D)	2.20"5.24"1.08"(56133275MM) (w/o knob & antenna)
Weight (Approx.)	280g

CCS Approved IMO Standard GMDSS Handle Held Maritime Very High Frequency VHF Radio

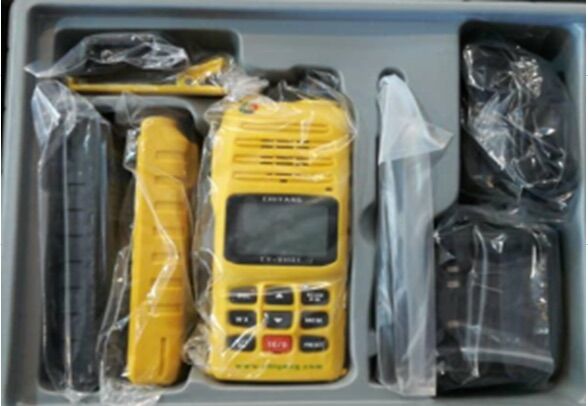

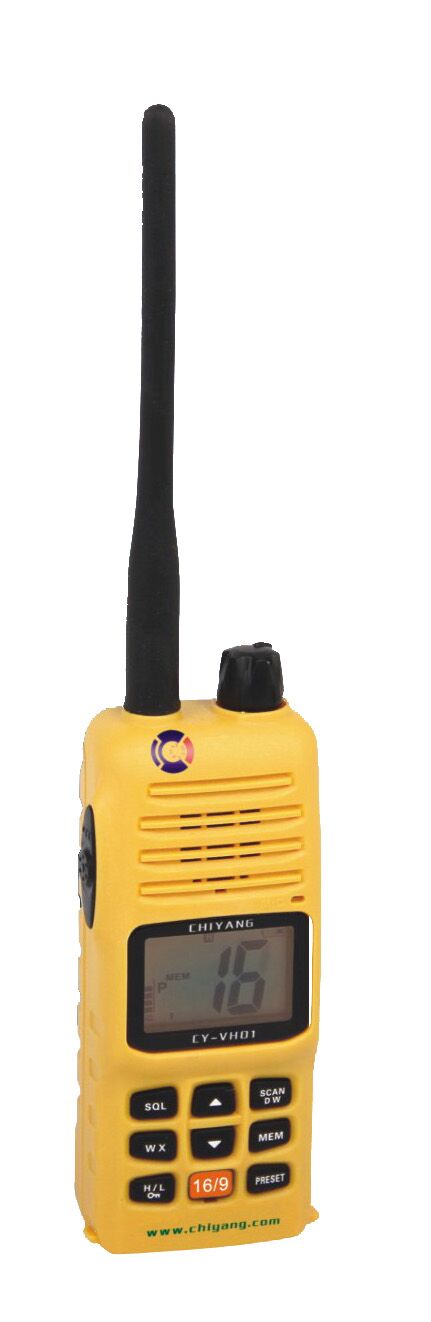

CCS Approved IMO Standard GMDSS Handle Held Maritime Very High Frequency VHF Radio Images
